BLDC MACHINE

Below are the comparison between high torque density of single stator with high torque density double stator



For district comparative evaluations, the motor constant square density G is used to quantify the level of performance.  The motor constant square density has considered the torque, power and volume of a particular motor which is good for comparison purposes.

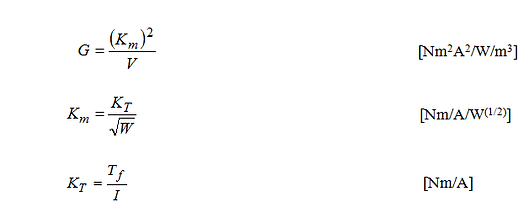

  The motor constant square density can be expressed as,







                                                                           [Nm²A²/W/m³]







                                                                           [Nm/A/W^(1/2)]







                                                                           [Nm/A]





where K_m is the motor constant in [Nm/A/W^(1/2)], V is the volume of the overall motor [m³], K_T is the torque constant in [Nm/A], W is the input power of coil in [W], T_f is the fundamental torque in [Nm] and I is the maximum  input current in [A].

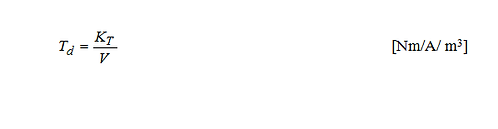

For some researcher, another established comparison is torque density which only considered torque and volume only. Torque density can be defined as below.







                                                                            [Nm/A/ m³]
